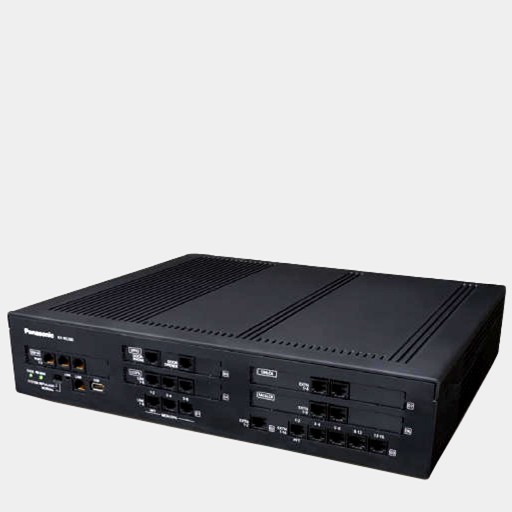

The KX-NS300 can utilize the benefits of a hybrid system to help businesses lower costs and allow a quick return on investment.
The NS300 can utilize the benefits of a hybrid system to help businesses lower costs and allow a quick return on investment.
| Product Type | Compact Hybrid IP-PBX |
| Built in Features | Built-in Simplified Voice Message |
| Capability | Up to 1000 exntensions |
| Dialing Method | Trunk: Dial Pulse (DP) 10 pps, 20 pps Tone (DTMF) Dialling; Extension: Dial Pulse (DP) 10 pps, 20 pps Tone (DTMF) Dialling; |
| CPU | Cortex A8 600 MHz |
| WAN/LAN Ports | 10BASE-T/100BASE-TX (Auto MDI/MDI-X) |
| Interface | SLT, DPT, PT-interface CS, PT-interface CS (High-density), DSS Console and Add-on Key Module |
| Cooling System | Fan |
| Environment | Temperature: 0 °C to 40 °C; Humidity: 10 % to 90 % (non-condensing); |
| Battery | External battery port is supported |
| Feature 01 | Ring Frequency: 20 Hz/25 Hz (selectable) |
| Feature 02 | Direct In Line (DIL), Direct Inward Dialling (DID)/Direct Dialling In (DDI), Calling Line Identification (CLI) Distribution, Intercept Routing |
| Feature 03 | Group Call Distribution, Outside Destinations in Incoming Call Distribution Group, Queuing Feature, VIP Call, Overflow Feature |
| Feature 04 | Predialling, Automatic Extension Release, Intercom Call, Trunk Call |
| Feature 05 | Dynamic Host Configuration Protocol (DHCP) Server, Flexible Numbering/Fixed Numbering, Floating Extension, Software Upgrading |
| Power | 100 V AC to 130 V AC: 2.2 A/200 V AC to 240 V AC: 1.3 A; 50 Hz/60Hz |
| Power Consumption | 110 W |
| Dimension | 430 mm (W) x 88 mm (H) x 367 mm (D) |
| Warranty | Under 4.5 kg (When Fully Mounted) |
The NS300 can utilize the benefits of a hybrid system to help businesses lower costs and allow a quick return on investment.
