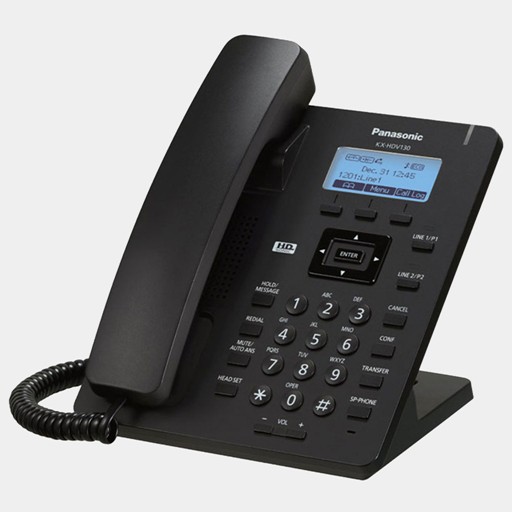

The entry level IP Phone with streamlined functions and the high-definition voice quality.
Compatible with Broadsoft UC one; 3-way conference call support; HD Voice (G.722)
| Product Type | SIP Phones |
| Mounting | 2 positions; Desk and Wall Mount |
| Display | Type: Monochrome Graphical; Size:2.3 inch Graphical LCD; Contrast: 6 levels |
| Resolution | 132 × 64 pixel |
| Buttons | 2 Programmable Keys |
| Headphone Out | 8 levels (includes echo cancellation and distortion prevention); RJ9 jack port |
| Audio Codec | G.711a-law / G.711µ-law / G.722 (wideband) / G.729a |
| Speaker Type | Built in Speaker; HD Voice |
| Address Book Capacity | 500 (Local) |
| IP Features | 2 SIP Accounts; Compatibility: RFC 3261 Standard SIP Server, Asterisk, Broadsoft, Panasonic IP PBX; IPv6 / IPv4; DHCP Client; DNS; HTTP; HTTPS; SNTP client; VLAN (802.1q); QoS(DiffServ) |
| Network Interface | Ethernet Ports: 2; Interface: 10/100 Mbps; |
| Connectivity | Server based configuration, TR-069; Internal web Configurator, Local (LCD based) network configuration |
| Environment | 0 °C - 40 °C (32 °F - 104 °F) |
| Feature 01 | Conference : 3 parties (within terminal – multi-party dependent on server) |
| Feature 02 | XML Application |
| Feature 03 | Changeable angle stand |
| Feature 04 | Wall mounting (Optional) |
| Power Consumption | AC Adaptor Stand-by: 2.0 W (ECO mode off), 1.3 W (ECO mode on); Talking: 2.1 W (ECO mode off), 1.4W (ECO mode on) Max: 2.8 W |
| Dimension | High position: 167 mm x 165 mm x 148 mm; Low position: 167 mm x 173 mm x 115 mm |
| Weight | 691 g |
Compatible with Broadsoft UC one; 3-way conference call support; HD Voice (G.722)
