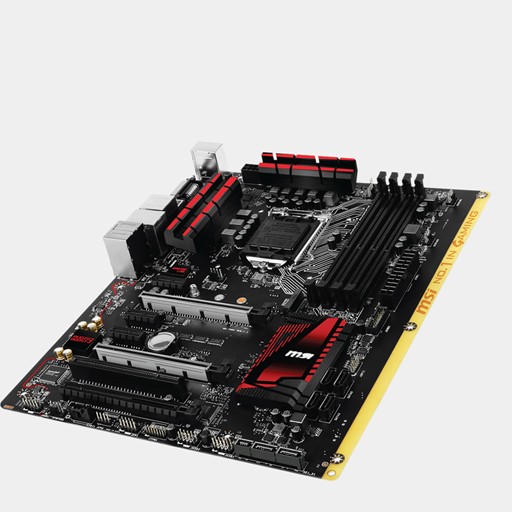

"MSI® GAMING motherboards are designed to provide gamers with best-in-class features and technology."
The PRO Series motherboards fit in any PC. Quality you can trust with top performance and clever business solutions are key aspects of these motherboards.
| Socket | LGA1151 Socket |
| CPU Support | Pentium, Celeron, Core i5, Core i3, Core i7 |
| Chipset | Intel Z170 |
| Memory | Max Size. 64 GB ; Bus Clock: 2400 MHz, 2133 MHz, 2800 MHz (O.C.), 2600 MHz (O.C.), 3000 MHz (O.C.), 3200 MHz (O.C.); Unbuffered; DDR4; ECC; Features: Intel Extreme Memory Profiles (XMP), dual channel memory architecture |
| Graphics | graphics adapter (CPU required) |
| Expansion Slots | Comments: x16/x4 mode; 4 DIMM RAM slots; 1 x CPU; 4 x DIMM 288-pin; 2 x PCIe 3.0 x16 (x16/x4 mode); 4 x PCIe 3.0 x1 |
| Storage Interface | SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5; SATA-600 / PCIe 3.0 -connectors: 1 x M.2, 2 x SATA Express port |
| LAN Interfaces | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Audio | Realtek ALC892; High Definition Audio (8-channel) |
| USB Port/Cable | USB 3.1 Gen 1; 4 x USB 3.1 Gen 1 + 2 x USB 2.0 |
| Back Panel Ports | 24-pin main power connector, 8-pin ATX12V connector; DVI-D, DisplayPort, LAN (Gigabit Ethernet), PS/2 keyboard / mouse, USB 2.0, USB 3.1 Gen 1, VGA, audio line-in, audio line-out, audio line-out (center/subwoofer), audio line-out (rear), audio line-out ( |
| I/O Ports | Mini Jack; 4 x USB 2.0 - header; 4 x USB 3.1 Gen 1 - header; 1 x audio - header; 1 x serial - header; 1 x parallel - header |
| I/O Controller | Realtek RTL8111H |
| H/W Monitoring | Features: 4K Ultra HD ready, AMD CrossFireX technology support, Debug LED, Double ESD Protection, MSI Audio Boost, MSI Guard-Pro, MSI Military Class IV, MSI VGA Armor, OC Genie 4, Super Charger, USB Redriver, overvoltage protection |
| BIOS | MSI ClickBIOS 5 |
| Supported Softwares | MSI M-Cloud |
| Form Factor | ATX |
| Dimension | Width:12 inXDepth:8.9 in |
The PRO Series motherboards fit in any PC. Quality you can trust with top performance and clever business solutions are key aspects of these motherboards.
