Epson Large Format Printers to deliver outstanding value in printing customer documents while using enough ink to maintain a reliable printing system that delivers outstanding print quality over the life of the printer.

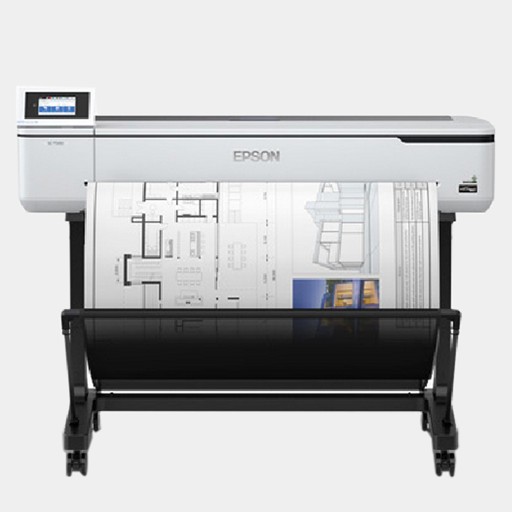

Engineered to enhance the way you work, the 36" SureColor T5170 wide-format wireless printer offers fast, precise and reliable printing with a compact, clean floor-standing design. Ideal for printing blueprints, line drawings, graphics and posters up to 36".
| Model Size | 36" |
| Functions | |
| Technology | PrecisionCore MicroTFP 4-channel, drop-on-demand printhead |
| Speed | A1/D-sized print: 34 seconds |
| Nozzle Configuration | Color and monochrome heads; 800 nozzles x 4 channels |
| Resolution | 2400 x 1200 dpi |
| Ink Type | UltraChrome XD2 pigment ink; 4-color (C, M, Y, K) |
| Cartridges Number | Ink Cartridge (26 ml) Cyan T40V220 Magenta T40V320 Yellow T40V420 Ink Cartridge (50 ml) Black T40V120 Cyan T40W220 Magenta T40W320 Yellow T40W420 Ink Cartridge (80 ml) Black T40W120 |
| Media Size | Roll: 13"/Sheet: 8.27" |
| Roll Media Handling | High-speed internal rotary cutter; auto or manual |
| Media Thickness | Up to 8.6 mil |
| Control Panel | 4.3" Touchscreen |
| Interface | SuperSpeed USB (compatible with USB 3.0 specification), Wireless LAN IEEE (802.11 b/g/n)4, Wired Ethernet (1000 Base-T/100 Base-TX/10 Base-T), Wi-Fi Direct |
| Voltage | Rated Voltage: AC 110–240 V |
| Rated Frequency | 50–60 Hz |
| Power Consumption | Printing: Approx. 28 W, Power Off (Stand By): 0.2 W |
| Rated Current | 1.4 A |
| OS Compatibility | macOS® 10.13.x, Mac® OS X® 10.12.x, 10.11.x, 10.10.x, 10.9.x, 10.8.x and 10.7.x Windows® 10, 8.1, 7 (32-bit, 64-bit), Windows Vista® and Windows XP8 |
| Environment | Operating Tempareture: 50 ˚ to 95 ˚F (10 ˚ to 35 ˚C) Operating (Recommended): 65 ˚ to 75 ˚F (18 ˚ to 24 ˚C) Storage: -4 ˚ to 104 ˚F (-20 ˚ to 40 ˚C) |
| Noise Level | Operating: Approx 49 dB(A) Sleep: Approx 32 dB(A) |
| Language Supported | ESC/P raster, HP-GL/2, HP RTL |
| Dimension | Without Stand: 50" x 28" x 36" (1268 x 696 x 913 mm) |
| Weight | Without Stand: 101 lbs (46 kg) |
Engineered to enhance the way you work, the 36" SureColor T5170 wide-format wireless printer offers fast, precise and reliable printing with a compact, clean floor-standing design. Ideal for printing blueprints, line drawings, graphics and posters up to 36".
