Dot Matrix Printer-printed fast, reducing waiting time with long life reliability.

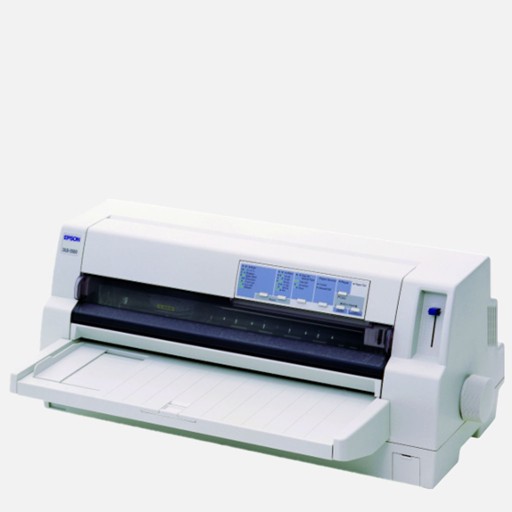

Epson DLQ-3500 Impact Dot Matrix Printer
| Functions | |
| Technology | Impact dot matrix |
| Number of Pins | 24 pins |
| Speed | High Speed Draft 10 CPI/550 cps, Draft 15CPI/5974 cps |
| MTBF | 10000 POH (25% duty cycle) |
| Print Head Life | 400 million strokes/wire |
| Supported Bitmap Fonts | Epson : Draft, Roman, Sans Serif, Courier, Prestige, Script, OCR-B, Orator, Orator-S, Script C |
| Supported Scalable Fonts | Espon: Roman, Sans Serif, Roman T, Sans Serif H |
| Barcode Sets | EAN-13, EAN-8, Interleaved2 of 5, UPC A, UPC-E, Code 39, Code 128, PostNet |
| Media Cut Sheet | Width: 90~420mm (3.5~16.5") (Manual insertion), 100~420mm (3.9~16.5") (CSF/ASA), Length: 80~420mm (3.15~16.5") (Manual insertion/ASA), 92~420mm (3.6~16.5") (CSF) |
| Envelopes Media | No.6, No.10 |
| Continuous Paper | Width: 101.6~406.4mm (4.0~16.0"), Length: Max. 558.8mm (22.0") Can also print labels |
| Multipart Copy | Original + 7 copies |
| Print Direction | Manual Insertion: (Front in, Front out), Tractor: (Rear in, Front out), Bi-directional with logic seeking |
| Memory | 128 K Byte |
| Supported Consumables | Fabric Ribbon Cartridge, Color : Black, Ribbon Life: Approx 9 million characters |
| Interface | Centronics®-type 8-bit parallel interface (IEEE-1284 Nibble mode) USB I/F ver.1.1, Option: Type B I/F level 2 |
| Control Panel | 7 switches, 12 LEDs, Noise: Approx.59dB (A) (ISO 7779 pattern) |
| Voltage | Rated Voltage: AC 120V or AC 220-240 V |
| Rated Frequency | 50-60 Hz |
| Power Consumption | Approx. 85W (ISO 10561 Letter pattern), Energy Star compliant |
| Environment | Temparature: 5-35º C , Humidity: 10-80% RH |
| Dimension | WIDTH 630mm X DEPTH 432mm X HEIGHT 276mm |
| Weight | Approx. 18.1 kg |
Epson DLQ-3500 Impact Dot Matrix Printer
