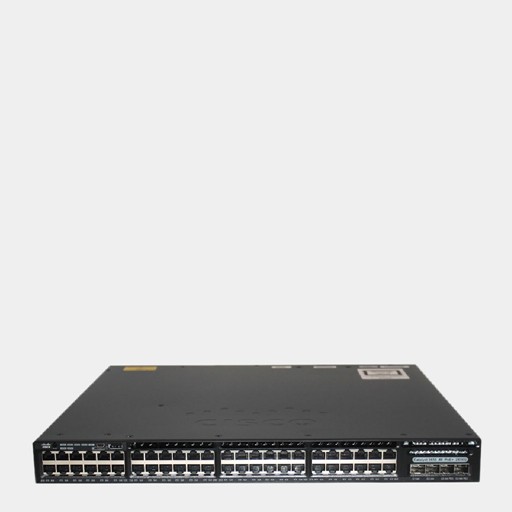

Cisco WS-C3650-48PS-S Catalyst 3650 Switch

It offers 48 Gigabit Ethernet POE+ ports with 4 fixed 1G SFP uplink ports and provides fully convergence between wired and wireless capacity on a single platform.

Country of Origin	USA
Model	WS-C3650-48PS-S
WAN/LAN Ports	48 x 10/100/1000 (POE+) + 4 x 1G SFP
Ethernet/RJ-45 Ports	Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling
SFP/Uplink Port	4 x 1G SFP uplinks
Bandwidth	160Gbps
Forwarding Rate	77.37Mpps
Switching Capacity	176Gbps
MAC Address	MAC Address Table Size : 32K
VLAN	4,094
Memory	RAM : 4 G ; Flash Memory : 2 G
MTBF	383,760
Power	Power supply : PWR-C2-1025WAC , Power Device : Power supply - redundant - plug-in module ; Power Redundancy : optional ; Voltage range (Auto) : 100V-240V ; Power Consumption of standalone (in Watts) : 99.5 (max)
Standards	· IEEE 802.1D Spanning Tree Protoco , IEEE 802.1p CoS Prioritization , IEEE 802.1Q VLAN , IEEE 802.1s , IEEE 802.1w , IEEE 802.1X , IEEE 802.1X-Rev , IEEE 802.11 , IEEE 802.1ab (LLDP) , IEEE 802.3ad , IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports , IEEE 802.3 10BASE-T , IEEE 802.3u 100BASE-TX , IEEE 802.3ab 1000BASE-T , IEEE 802.3z 1000BASE-X , RMON I and II standards , SNMP v1, v2c, and v3
Advanced Features	EEM · RPS Support · IP service-level agreements (SLAs) · Advanced IP unicast routing protocols · Jumbo Frames · VLANS · Voice Vlan · VTPv2 · CDPv2 · LLDP · 802.3ad LACP and PAgP · PVST/PVST+ · 802.1W/802.1S · Port Fast/Uplink Fast · Dynamic Trunking Protocol (DTP) · port CoS Trust and Override · Trusted Boundary · ACL Classification · ingress Policing · Auto QoS · Per VLAN policies · 802.1p queues · Scheduling · Priority Queuing · Configure CoS Priority Queues · Configure CoS Priority Queues · Configure Queue Weights · Configure Buffers and Thresholds · Class & Policy Maps · Modify CoS and DSCP Mapping · Weighted Tail Drop · IGMPv1,v2,v3 and MLDv1, v2 · DHCP server · DSCP transparency · HSRP, VRRP, BLGP · RIPv1, v2 EIGRP, PIM OSPF, OSPFv3, EIGRPv6, BGPv4, IS-ISv4 · VRF-lite · PIM-SM/DM, PIM sparse-dense mode, SSM · Flexible Netflow
Weight	17.49 Kg

Review is not available now!

To download flyer, brochure or specification of Cisco WS-C3650-48PS-S Catalyst 3650 Switch , click the on the buttons. (All documents are pdf format)

Flyer

Brochure

It offers 48 Gigabit Ethernet POE+ ports with 4 fixed 1G SFP uplink ports and provides fully convergence between wired and wireless capacity on a single platform.
