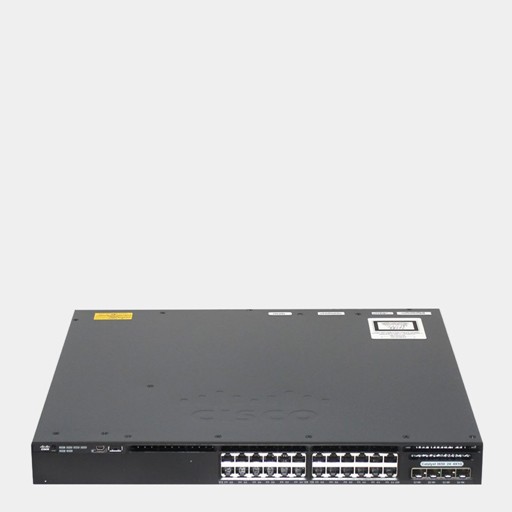

Cisco WS-C3650-24TS-L Switch

This product has 30 review(s) Add Review
Availability: Pre-order Product
Part no # WS-C3650-24TS-L

The Cisco® Catalyst® 3650 Series is the next generation of enterprise-class standalone and stackable access-layer switches that provide the foundation for full convergence between wired and wireless on a single platform.

Corporate/Service Product

The 3650 Series is built on the advanced Cisco StackWise® -160 and takes advantage of the new Cisco Unified Access™ Data Plane (UADP) application-specific integrated circuit (ASIC). Thisswitch can enable uniform wired-wireless policy enforcement, application visibility, flexibility, application optimization, and superior resiliency. The 3650 Series switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), Cisco Universal Power over Ethernet (Cisco UPOE® ) on the Cisco Catalyst 3650 Series multigigabit switches and offer modular and field-replaceable redundant fans and power supplies.

Model WS-C3650-24TS-L
Software Type IOS LAN Base (Upgradable)
Ethernet/RJ-45 Ports 24 x 10/100/1000 + 4 x 1G SFP ; USB (Type-B), Ethernet (RJ-45)
SFP/Uplink Port 4 Ports
Bandwidth 160Gbps
Forwarding Rate 41.66Mpps
Switching Capacity 88Gbps
VLAN Maximum VLANs IDs : 255 , Maximum VLANs IDs : 32K
Memory RAM : 4 G , Flash Memory : 2 G
MTBF 661,800 Hours
Power Power supply : PWR-C2-640WAC , Power Device : Power supply - redundant - plug-in module , Power Redundancy : optional , Voltage range (Auto) : 100V-240V , Power Consumption of standalone (in Watts) : 57.1 (max)
Standards IEEE 802.1D Spanning Tree Protoco , IEEE 802.1p CoS Prioritization, IEEE 802.1Q VLAN, IEEE 802.1s, IEEE 802.1w, IEEE 802.1X, IEEE 802.1X-Rev,IEEE 802.11, IEEE 802.1ab (LLDP), IEEE 802.3ad, IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T po
Protocol Dynamic Trunking Protocol (DTP)
Environment With AC power supply Operating environment and altitude : Operating temperature up to 5000 ft (1500 m) : 23ºF to 113ºF (-5ºC to +45ºC) ; Operating temperature up to 10,000 ft (3000 m) : 23ºF to 104ºF (-5ºC to +40ºC) ; Short-term exception at sealevel wit
Weight 15.15 Pounds (6.87Kg)
Dimension (WxDxH) 17.5 x 17.5 x 1.73 Inch
Review is not available now!
To download flyer, brochure or specification of Cisco WS-C3650-24TS-L Switch , click the on the buttons. (All documents are pdf format)
Flyer
Brochure

The 3650 Series is built on the advanced Cisco StackWise® -160 and takes advantage of the new Cisco Unified Access™ Data Plane (UADP) application-specific integrated circuit (ASIC). Thisswitch can enable uniform wired-wireless policy enforcement, application visibility, flexibility, application optimization, and superior resiliency. The 3650 Series switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), Cisco Universal Power over Ethernet (Cisco UPOE® ) on the Cisco Catalyst 3650 Series multigigabit switches and offer modular and field-replaceable redundant fans and power supplies.
