These switches simplify the migration from non-intelligent hubs and unmanaged switches to a fully scalable managed network.
These switches simplify the migration from non-intelligent hubs and unmanaged switches to a fully scalable managed network. Cisco Catalyst 2960 Series Switches have lower cost of ownership with features such as intelligent switch configuration using Auto Smart Ports, installation with Auto Install and enhanced troubleshooting to facilitate ease of use. Comprehensive management tools such as Cisco Network Assistant provide ongoing management and monitoring of switches.

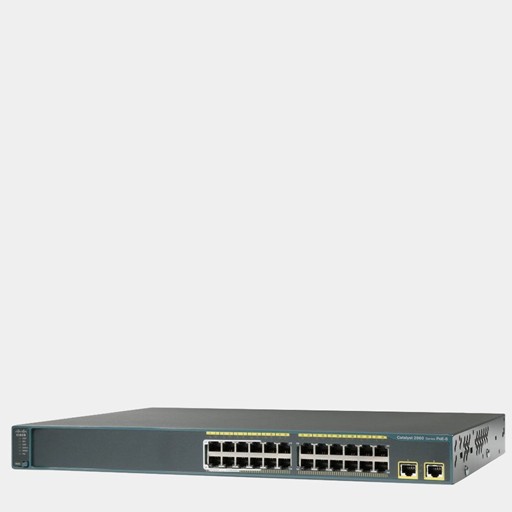

| Model | WS-C2960-24TT-L Cisco 2960 Switch |
| WAN/LAN Ports | 24 x Ethernet 10/100 ports |
| Ethernet/RJ-45 Ports | RJ45 Console Port |
| SFP/Uplink Port | 2 x 10/100/1000 TX uplinks |
| Throughput | 6.5 Mpps |
| Bandwidth | 32 Gbps |
| Forwarding Rate | Forwarding Bandwidth: 16 Gbps |
| VLAN | Max VLANs: 255 |
| Memory | Standard Memory: 128MB & Memory Technology:DRAM & Flash Memory: 64MB |
| Jumbo Frames | 9,016 bytes |
| MTBF | 407,707 hours |
| Power | Max. Watt Power Consumption: 75 , DC input voltages (RPS input): 12 V at 11.25 A (-48 V at 7.8 A) ; Voltage: 100 to 240 VAC (Autoranging); 50 to 60 Hz |
| Environment | Operating Temperature up to 10,000 ft (3000 m): 23 to 104 F (-5 to 40 C) ; Operating Temperature up to 5000 ft (1500 m): 23 to 113 F (-5 to 45 C) ; Operating Altitude: Up to 10,000 feet (3000 m) ; Storage Altitude: Up to 13,000 feet (4000 m) ; Storage Rel |
| Form Factor | Fixed, Rack Mountable, Standalone/Clustering |
| Advanced Features | Fan Exhaust,RPS Connector, AC power connector ; SPAN, RSPAN, CiscoView, Cisco Discover Protocol (CDP), Virtual Trunking Protocol (VTP), Telnet Client, BOOTP, TFTP, CiscoWorks, CWSI, RMON, SNMP, Clustering, Web-Based Management |
| Weight | 7.94 lbs |
| Dimension | (WxDxH) 17.7 x 9.5 x 1.7 in |
These switches simplify the migration from non-intelligent hubs and unmanaged switches to a fully scalable managed network. Cisco Catalyst 2960 Series Switches have lower cost of ownership with features such as intelligent switch configuration using Auto Smart Ports, installation with Auto Install and enhanced troubleshooting to facilitate ease of use. Comprehensive management tools such as Cisco Network Assistant provide ongoing management and monitoring of switches.
