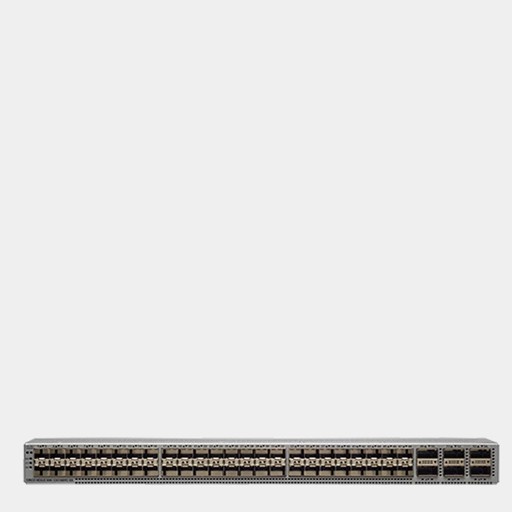

CISCO SYSTEMS 2 Nexus 93108tc-ex Switch

This product has 30 review(s) Add Review
Availability: Pre-order Product
Part no # N9K-C93180YCEXB

Cisco Nexus 9300-EX platforms are the next generation of fixed Cisco Nexus 9000 Series Switches.

Corporate/Service Product

The Cisco Nexus 93180YC-EX is a 1-rack-unit (1RU) switch that supports 3.6 terabits per second (Tbps) of bandwidth and over 2.8 billion packets per second (bpps). The 48 downlink ports on the 93180YC-EX can be configured to work as 1-, 10-, or 25- Gbps ports, offering deployment flexibility and investment protection. The uplink can support up to six 40- and 100-Gbps ports, or a combination of 10-, 25-, 40-, 50-, and 100-Gbps connectivity, offering flexible migration options.

Country of Origin USA
Model N9K-C93180YCEXB
Software Type Cisco NX-OS
WAN/LAN Ports 48 x 1/10/25 Gigabit SFP+ + 6 x 40/100 Gigabit QSFP+
Ethernet/RJ-45 Ports 25 Gigabit Ethernet /1 x management - RJ-45
Combo Ports SFP 1 x management - SFP+
SFP/Uplink Port 10GbE Copper
Support PoE 1/10/25-Gbps speeds
Slots 1 x serial (RS-232)
Memory System memory : 24 GB / SSD Drives: 64 GB SSD
MTBF 390,330 hours
Power Power supplies (up to 2) : 650W AC, 930W DC, or 1200W HVAC/HVDC ; Typical power (AC/DC) : 210W ; Maximum power (AC/DC) : 470W
Standards 1 Second Edition, RoHS, GB 4943, Directive 2004/108/EC, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, Directive 2006/95/EC, VCCI Class A, KN22 Class A, EN 300386, EN61000-3-2, EN61000-3-3, EN 55024, EN 55022 Class A, CNS 13438 Class A, CAN/CSA C22.2 No. 60950-1 Second Edition, KN 61000-4
Packet Buffer 40 MB
Protocol Maximum number of Hot-Standby Router Protocol (HSRP) groups : 490
Interface 1 x USB
LED Indicator Chassis LEDs (Beacon and Status)
Environment Operating temperature : 32 to 104°F (0 to 40°C) ; Nonoperating (storage) temperature : –40 to 158°F (–40 to 70°C) ; Humidity : 5 to 95% (ncondensing) ; Altitude : 0 to 13,123 ft (0 to 4000m)
Connectivity 1Power Supply, 2 (4xFan Module), 1 Power Supply, 1 Out of Band Management Port (RJ-45 port), 1 Chassis LEDs (Beacon and Status), 1USB port, Out-of-band management port (SFP port), 1 Console port (RS232 port)
Included Accessories 2 x accessory kits
Advanced Features CISPR 22 Class A, CISPR 24, AS/NZS 60950-1, ICES-003 Class A, RoHS, UL 60950-
Weight 17.2 lb (7.8 kg)
Review is not available now!
To download flyer, brochure or specification of CISCO SYSTEMS 2 Nexus 93108tc-ex Switch , click the on the buttons. (All documents are pdf format)
Flyer

The Cisco Nexus 93180YC-EX is a 1-rack-unit (1RU) switch that supports 3.6 terabits per second (Tbps) of bandwidth and over 2.8 billion packets per second (bpps). The 48 downlink ports on the 93180YC-EX can be configured to work as 1-, 10-, or 25- Gbps ports, offering deployment flexibility and investment protection. The uplink can support up to six 40- and 100-Gbps ports, or a combination of 10-, 25-, 40-, 50-, and 100-Gbps connectivity, offering flexible migration options.
