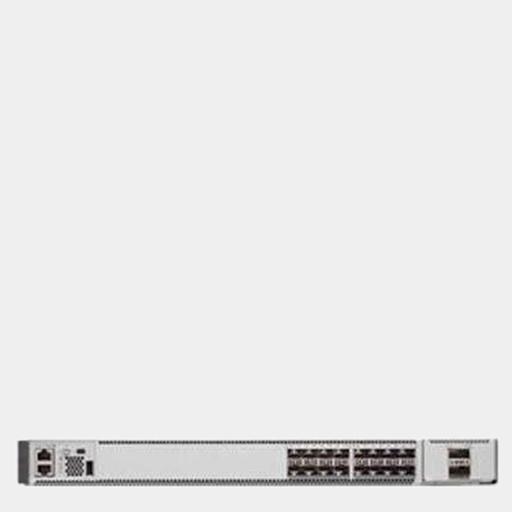

CISCO CATALYST 9500 16-PORT lOGIG,SWITCH NETWORK ADVANTAGE

The Cisco Catalyst 9500 Series Switches are the next generation of enterprise-class core and aggregation layer switches, supporting full programmability and serviceability. Based on an x86 CPU, the Catalyst 9500 Series is Cisco's lead purpose-built fixed core and aggregation enterprise switching platform, built for security, IoT, and cloud. The Catalyst 9500 Series is the industry's first purpose-built 40 Gigabit Ethernet line of switches targeted for the enterprise campus.

Country of Origin	USA
Model	C9500
WAN/LAN Ports	16-port 10Gig
SFP/Uplink Port	8 x 1/10 G or 2 x 40 G uplinks
Forwarding Rate	Up to 360 Mpps
Switching Capacity	Up to 240 Gbps
Memory	DRAM : 16 GB ; Flash : 16 GB
Jumbo Frames	9198 bytes
MTBF	315,790
Power	Power Supply Selection : C4-950WAC-R or PWR-C4-950WDC-R ; Power max rating : 950 W
Environment	Operating temperature : 32° to 104°F (0° to 40°C) ; Storage temperature : 4° to 149°F (-20° to 65°C) ; Relative humidity operating and nonoperating noncondensing : Ambient (noncondensing) operating: 5% to 90% , Ambient (noncondensing) nonoperating and storage: 5% to 95% ;Altitude : Operation up to 6000 feet at 55°C and 13,000 feet at 45°C
Dimension	(H x W x D) 1.73 x 17.5 x 21.52 in

Review is not available now!

To download flyer, brochure or specification of CISCO CATALYST 9500 16-PORT lOGIG,SWITCH NETWORK ADVANTAGE , click the on the buttons. (All documents are pdf format)
